With EXFO’s Open Transceiver System (OTS): innovative, evolutionary design enabling any transceiver (now or future) to fit into an EXFO test solution
FTBx-88260 - 10M to 100G network tester
Übersicht
Customizable 10M -100G testing, including 100ZR coherent support, with multi-interface flexibility via EXFO’s Open Transceiver System (OTS)
Anwendungen
Ethernet/IP network testing and troubleshooting up to 100G
5G transport network validation (fronthaul, midhaul, backhaul)
Data centers

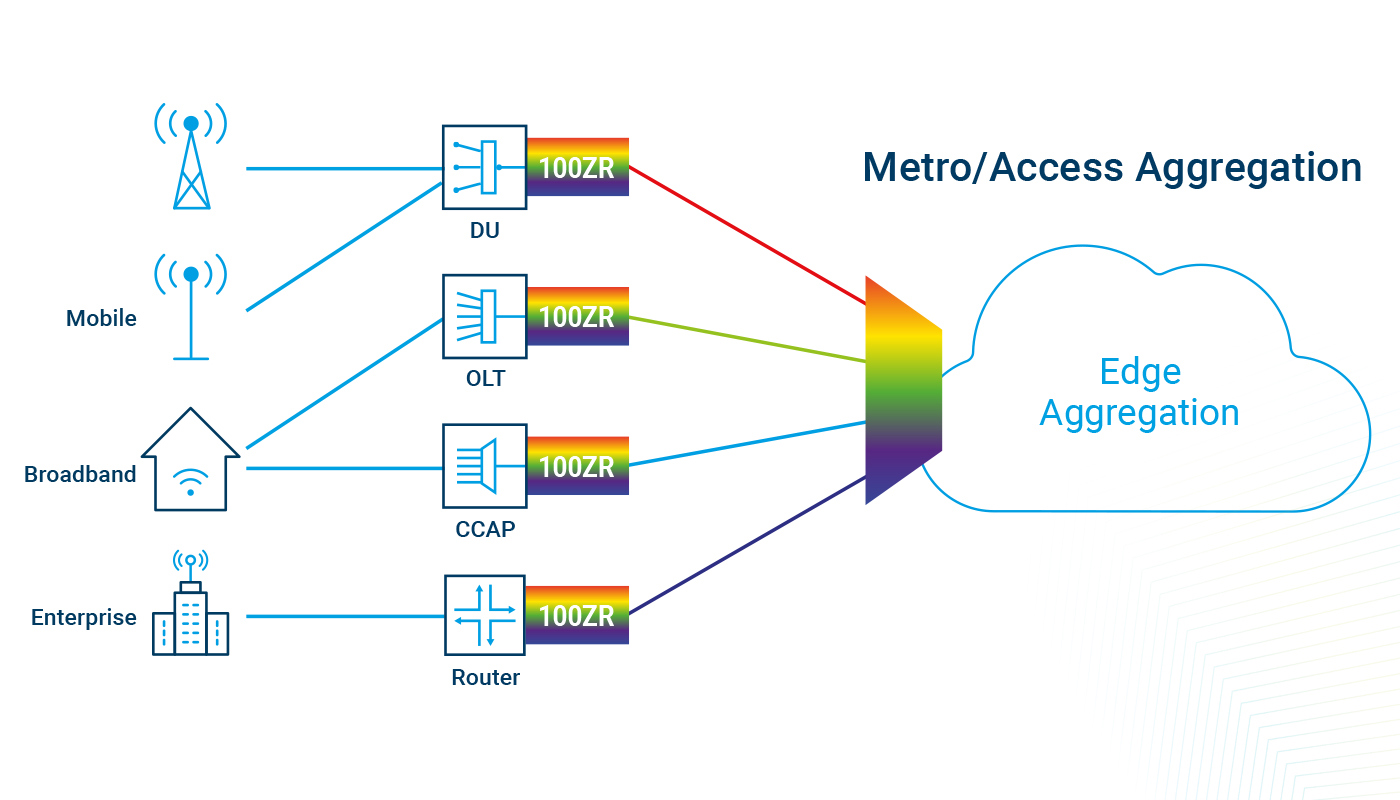

Industry’s first field portable test unit supporting 100ZR coherent interface
- 100 Gbit/s DWDM wavelengths with reach up to 300 km
- Low power coherent QSFP28 transceiver (< 5 watts) for easy migration and deployment
- Use cases: Metro and edge network aggregation, 5G mobile backhaul and middle mile connectivity for rural broadband
Test today's transceivers.
Be ready for tomorrow's.
EXFO's Open Transceiver System (OTS), an innovative, evolutionary design concept enabling any transceiver (now or future) to fit an EXFO test solution.
- Experience ultimate flexibility—swap out OTS modules right in the field, lab or on the production floor, choosing only the ones needed for the applications, rates or technologies under test.
- Reduce costs significantly by eliminating the need to purchase an entirely new test unit. Instead, change a less costly OTS module and extend the life of testing equipment.
- Support multiple transceiver types simultaneously with a future-proof architecture designed to handle both current and upcoming high-speed transceiver technologies as they are developed and launched.
From left to right: Dual SFP28, Single CFP4, Dual QSFP28, Sync
Support for multiple transceiver types
Electrical interface support (using an adapter):
- 10M, 100M, 1G, 2.5G, 5G and 10G electrical
Dual SFP28
- 10G / 25G / FC32x data rates
- Ethernet dual port (EBERT, RFC2544, ESAM, TGEN), OTN, SONET/SDH, FC testing
Dual QSFP28
- 40G/100G data rates
- Framed Ethernet dual port (EBERT, RFC2544, ESAM, TGEN), OTN testing
Single CFP4
- 100G data rate
- Ethernet dual port (EBERT, RFC2544, ESAM, TGEN), OTN testing
SYNC
- Built-in GPS
- Ideal solution for latency and clock testing
- Timing and Sync applications: 1588 PTP/SyncE, Wander and time error
Testergebnisse teilen. Konformität steigern. Erkenntnisse gewinnen.
Cloudbasierte Lösung zur Ergebnisverwaltung und Compliance-Optimierung.
In Kombination mit EXFOs führenden Testinstrumenten treibt EXFO Exchange ein ganzes Ökosystem voran – nahtlos integriert in bestehende Betriebsprozesse.
Wichtigste Vorteile :
Automatisierte Verwaltung von Testergebnissen
Höhere Konformität und Effizienz.
Verbesserte Zusammenarbeit und Transparenz.
Umfassende Berichterstattung.
Erkenntnisse gewinnen – sehen, was wirklich zählt.
