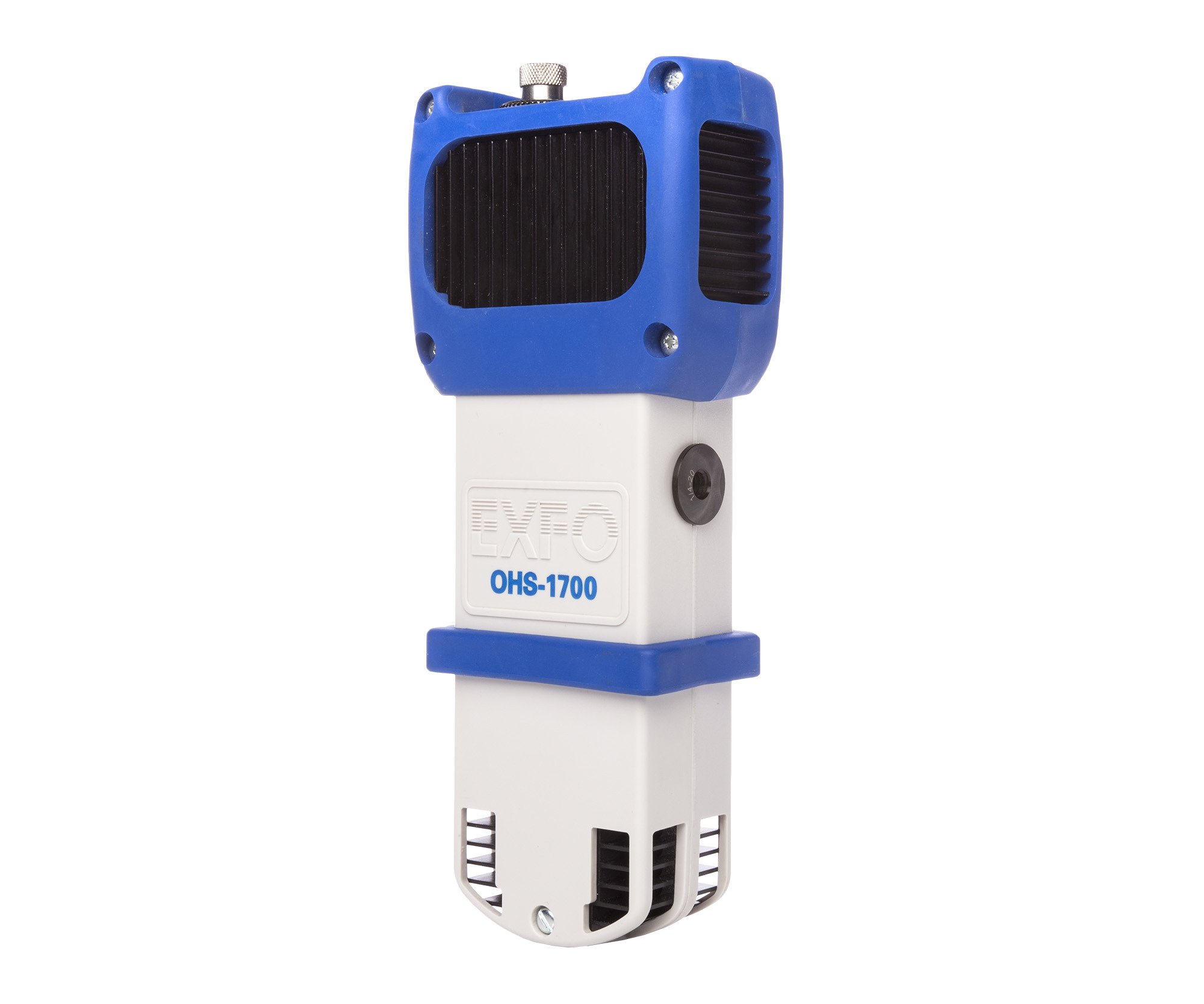

OHS-1700 - High-Performance Optical Head

Overview
The OHS-1700 High-Performance Optical Head interfaces with the FTBx-1750 module, delivering high performance for R&D and active/passive component manufacturing test setups.

Key features

  • Measurement up to +37 dBm
  • Possibility to combine up to 2 remote heads on single interface module
  • 9 mm input aperture
  • Continuous sampling rate of up to 5 kHz

Applications

  • Absolute power measurement up to +40 dBm
  • IL and PDL testing of connectorized or non-connectorized passive components

Specifications

Technical specifications
Compatible Products LTB-12 / LTB-2 / LTB-8
Recalibration Month Interval 12
Full specifications

Resources

Spec sheet

FTBx-1750/OHS-1700
User manual

IQS-1700 High Performance Power Meter for IQS-500/600
All resources

Description

The OHS-1700 is a remote power measurement sensor that interfaces with the FTBx-1750 module, delivering high performance for R&D and active/passive component manufacturing test setups.

The—Ultra-High-Power™—OHS-1700 Optical Heads can handle high power levels while maintaining unsurpassed accuracy, a very high sampling rate and an impressive stabilization time.

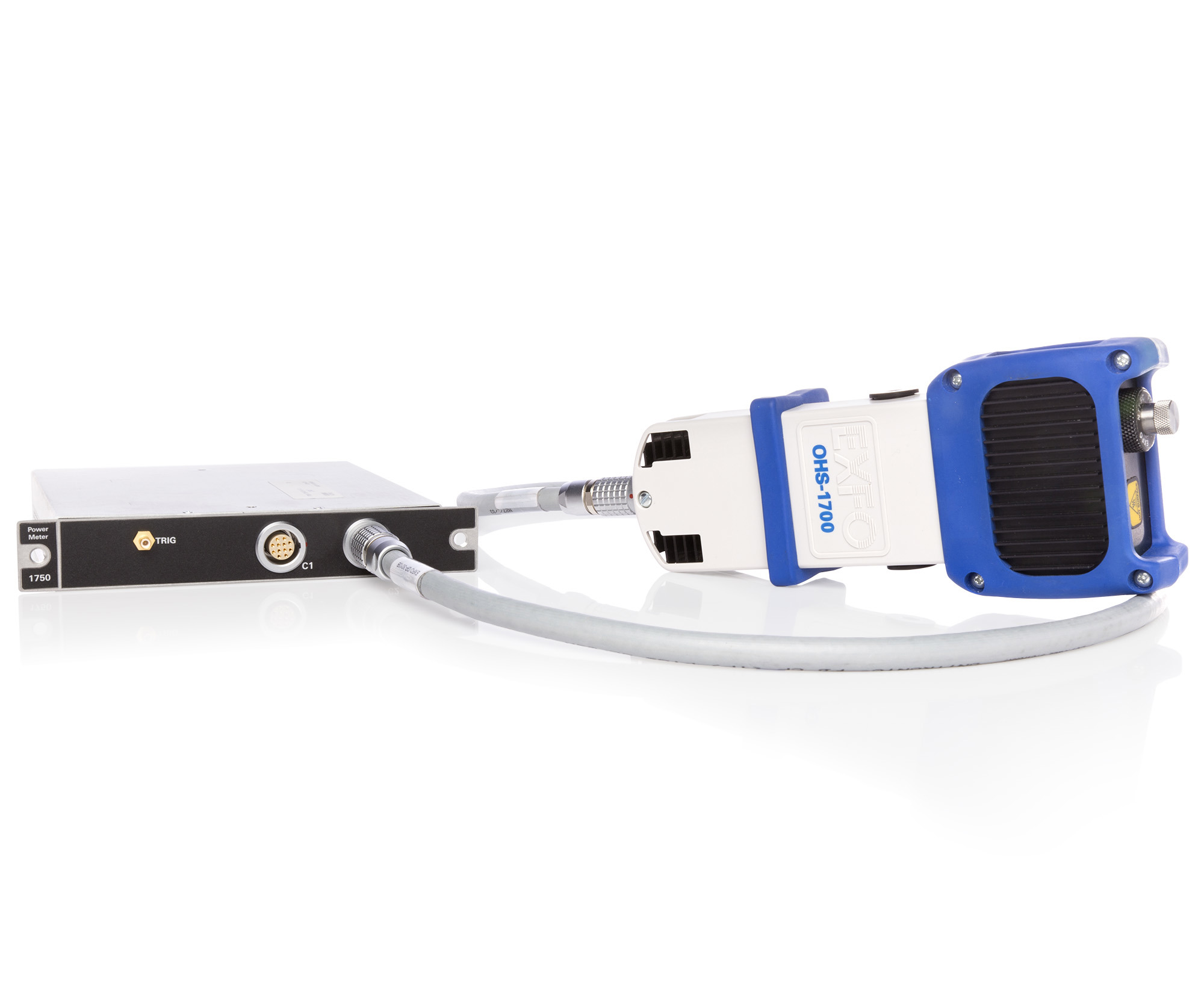

Use up to two independent optical heads on a single FTBx-1750 interface module to improve efficiency, reduce costs and save space.
